WELDED GABIONS

Gabion boxes are made by assembling square welded mesh panels together using spiral connectors forming a uniform & aesthetic demarcation barrier and building structure

Features

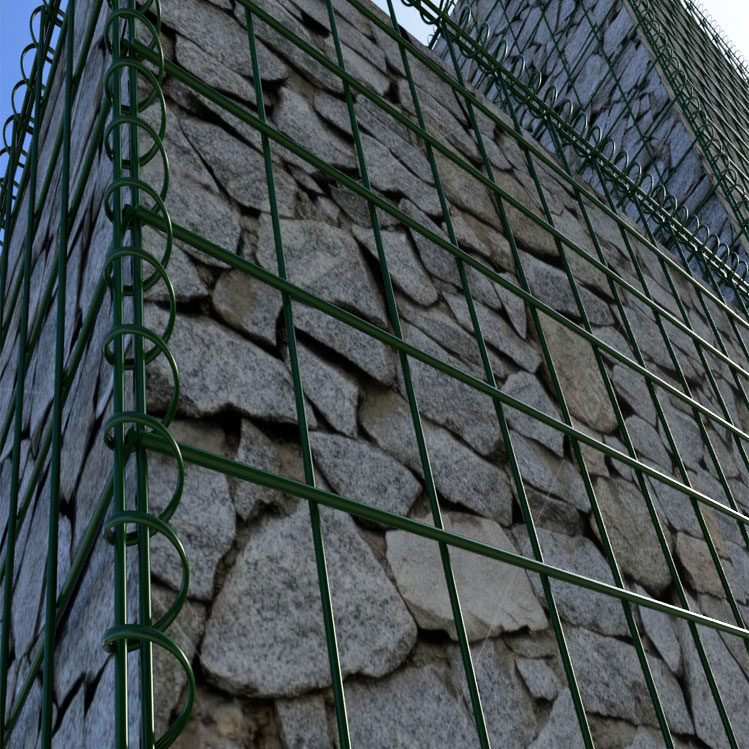

Easy Installation

Modular panels can be fixed together using spiral wires without use of any equipment which makes the installation easy and fast.

Aesthetic

Engineered with high consistency gives the boxes a uniform look which adds to the beautification.

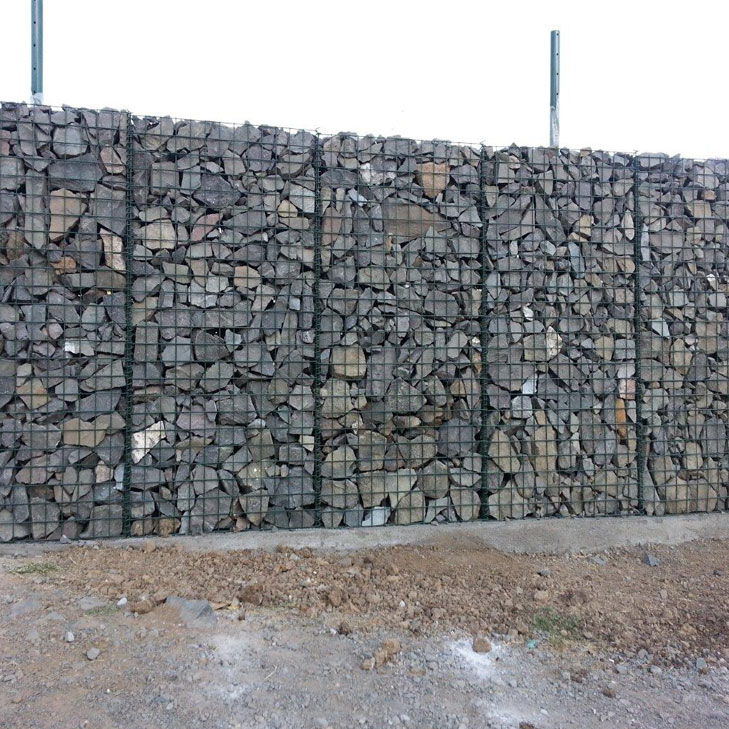

Sustainable

As it doesn’t consume cement, it is a very sustainable alternative for compound walls.

Sturdy & Rigid

High weld & tensile strength imparts stability to the structure arresting bending against external loads.

Long Life

Multiple Coating options gives superior corrosion resistance against harsh environmental conditions.

Specification

Coating Wire Diameters Std. Sizes (M) Std. Mesh Sizes (mm)
GAL - 1(99.99% Zinc) GALUM - 1 (Zinc 95% + Alu5%) 2.50mm 1.0 x 1.0 x 0.5 50x50
3.00mm 1.0 x 1.0 x 0.5 75x75
4.00mm 1.5 x 1.0 x 0.5 100x50
GAL - 1 or GALUM -1 +Polyester Powder Coating 4.50mm 2.0 x 1.0 x 0.5 100x100
5.00mm 2.0 x 1.0 x 1.0 100x150
3.0 x 1.0 x 1.0 150x150
4.0 x 1.0 x 1.0


Applications

Architecture

Demarcation
